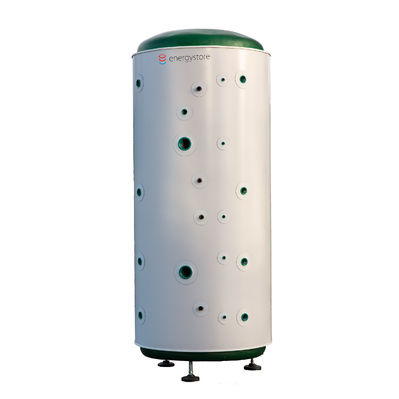

EnergyStore Bio Duo Thermal Stores
EnergyStore Bio Duo thermal stores are designed to work 'out of the box' with wood boiler stoves, wood pellet boilers and other types of biomass boiler. These thermal stores range in size from 500lt up to 3000lt as standard, with larger tanks available at request. There are tappings positioned for connecting the EnergyStore Bio Duo to the wood boiler as well as tappings intended for a conventional oil or gas boiler. On the heating side there are tappings for providing heat to your central heating system with a number of tappings to allow for various different configurations depending on the application.
- Solid state, high surface area, two stage heat exchange coils provide plenty of mains pressure domestic hot water.
- There are tappings specifically positioned for biomass boilers as well as ones for conventional boilers meaning an easier job for the installer.
- EnergyStore thermal stores have removable and adjustable legs making it easier to get the tank into position.
- Flush tappings make it easy to connect up pipes to the thermal store - simpler install and less parts and fittings needed.
- Multiple probe/thermometer gauge points to allow for automated control and measurement.
If you would also like to combine your biomass boiler with a solar thermal hot water system then take a look at the EnergyStore Bio Quattro thermal stores, which have an extra 2 heat exchanger coils for solar thermal input.
Delivery charges vary depending on the volume of the store.
| Model | Height | Diameter | Pressure Rating | Weight | Price | |
|---|---|---|---|---|---|---|
| BIO DUO | ||||||
| ENERGYSTORE BIO DUO 1000 LT THERMAL STORE | 2150mm | 1050mm | 3bar | 255kg | £4,735.00 inc. VAT | |
| ENERGYSTORE BIO DUO 1500 LT THERMAL STORE | 2200mm | 1250mm | 3bar | 325kg | £5,715.00 inc. VAT | |
| ENERGYSTORE BIO DUO 300 LT THERMAL STORE | 1975mm | 695mm | 3bar | 160kg | £3,860.00 inc. VAT | |
| ENERGYSTORE BIO DUO 500 LT THERMAL STORE | 2050mm | 800mm | 3bar | 195kg | £4,170.00 inc. VAT | |
| ENERGYSTORE BIO DUO 750 LT THERMAL STORE | 2100mm | 950mm | 3bar | 235kg | £4,500.00 inc. VAT | |
| Thermal Store extras | ||||||
| Two removable sides for narrow access (reduction of 200mm) | £230.00 inc. VAT | |||||
